Duplex for S. Fioritti [Project: 238-01-77]

Project material consists of one large folder of architectural drawings pertaining to the design of a duplex for Mr. Sergio Fioritti at the corner of Henry Street and Mary Street in Victoria, B.C. The address has been identified as 604/606 Mary Street. Included are site plans; foundation plans; floor plans; elevations; electrical plans; section drawings; site contours; sketches; and other material produced at various stages of the design process.

In Collection:

• Alan Hodgson Collection

Creator

• Hodgson, Alan J. (Alan James)

Subject

• Architecture
• Architects
• Modern movement (Architecture)
• Architecture, Modern
• Architecture, Domestic

Language

• eng

Identifier

• Project: 238-01-77

Date created

• approximately December 1976 to approximately February 1977

Resource type

• Still Image
• Text

Rights statement

• In Copyright - Educational Use Permitted

Extent

• 52 architectural drawings

Geographic coverage

• British Columbia--Victoria

Coordinates

• 48.432335, -123.386265

Physical repository

• University of Victoria (B.C.). Library

Collection

• Alan Hodgson Collection

Provider

• University of Victoria (B.C.). Library

Sponsor

• Digitized through the support of the BC History Digitization Program, Irving K. Barber Learning Centre, University of British Columbia.

Genre

• architectural drawings (visual works)
• floor plans (orthographic projections)
• elevations (orthographic projections)
• foundation plans
• sections (orthographic projections)
• electrical plans
• site plans

Archival item identifier

• Accession Number: 2020-002

Fonds title

• Alan Hodgson fonds

Fonds identifier

• AR513

Is referenced by

• Special Collections Finding Aid: https://uvic2.coppul.archivematica.org/alan-hodgson-fonds

Date digitized

• December 2021

Technical note

• Digitized at 300 dpi by The Crowley Company. Metadata by Matt Innes.

Rights

• This material is made available on this site for research and private study only.

DOI

•  https://doi.org/10.58066/jd18-fp37

Thumbnail	Title	Date Uploaded	Visibility	Actions
	Duplex for S. Fioritti [Item: 2020-002-057-001] – [1/6] Site Plan and Foundations		Public	Press to Select an action Download

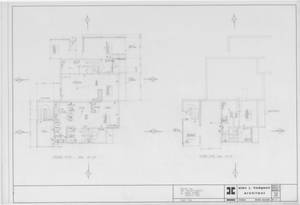

	Duplex for S. Fioritti [Item: 2020-002-057-002] – [2/6] Floor Plans		Public	Press to Select an action Download

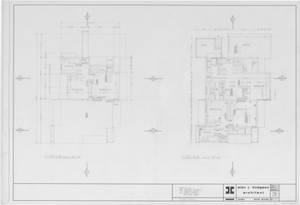

	Duplex for S. Fioritti [Item: 2020-002-057-003] – [3/6] Floor Plans		Public	Press to Select an action Download

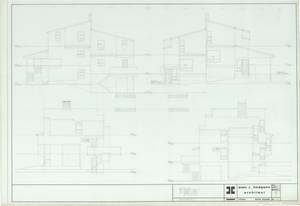

	Duplex for S. Fioritti [Item: 2020-002-057-004] – [4/6] Sections and Elevations		Public	Press to Select an action Download

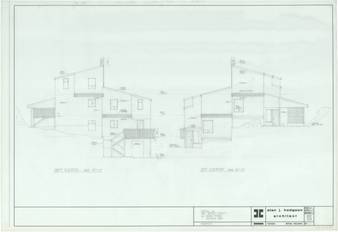

	Duplex for S. Fioritti [Item: 2020-002-057-005] – [5/6] Elevations		Public	Press to Select an action Download

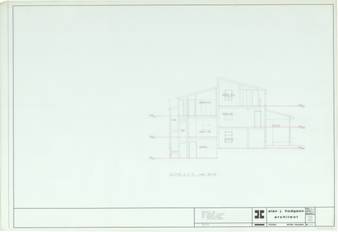

	Duplex for S. Fioritti [Item: 2020-002-057-006] – [6/6] Building Section		Public	Press to Select an action Download
